Quadra Fire Pit

TWO: CASTING

Video Overview
What You’ll Need

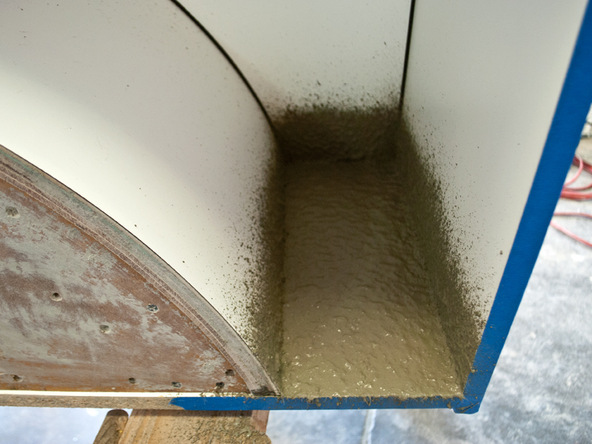

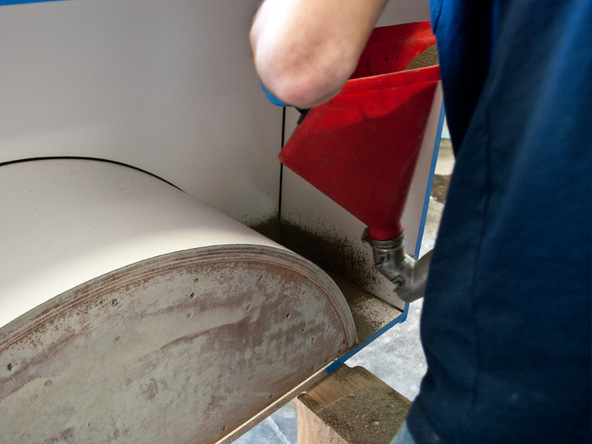

Step 1 – Spray the Face Coat

  • The face coat can be sprayed with a GFRC sprayer using the Surecrete Xtreme Series Precast Mix.
  • Supporting the form on saw horses and rotating it as you spray will make it easier to spray the larger surfaces.
  • Spray the coats on thin and build them up as they begin to dry. If you spray too much on at once, it will slump.
  • Any vibration can also cause the concrete to slump down, creating a runny surface.

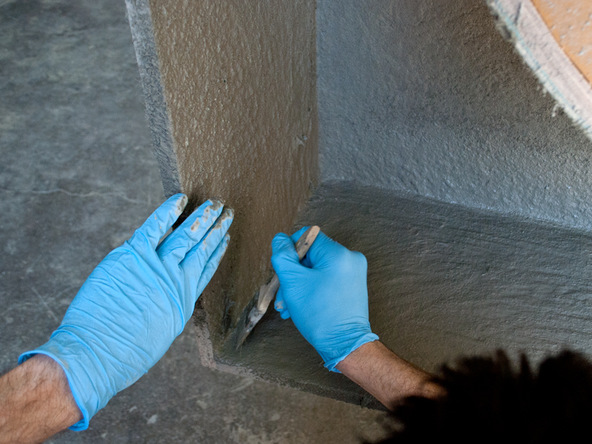

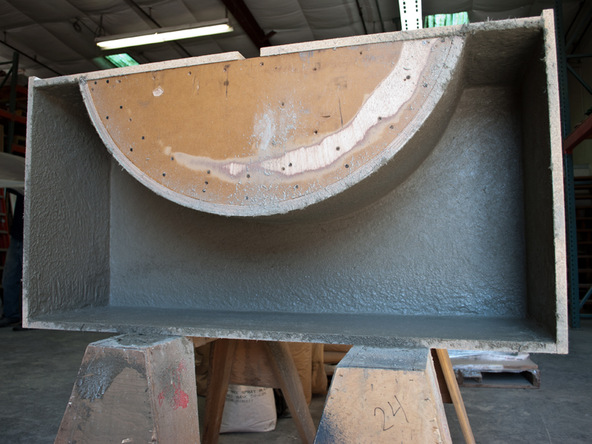

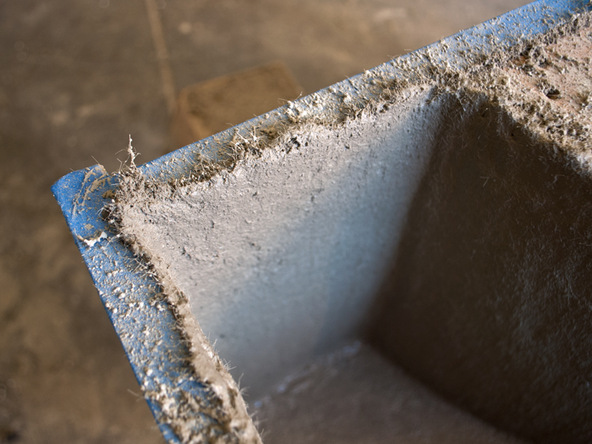

Step 2 – Chip Brush

  • After the first coat is completely sprayed, use a chip brush to gently force the concrete into the edges of the form.

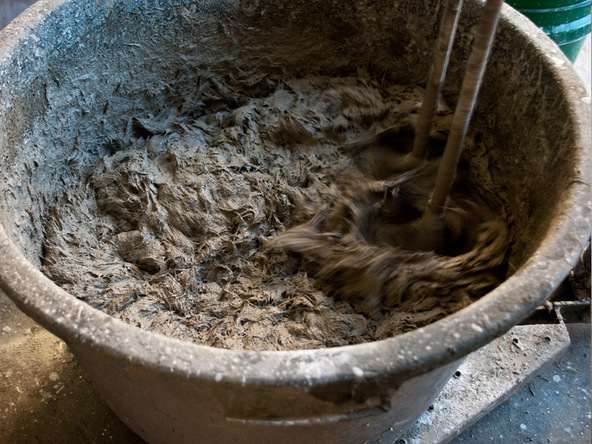

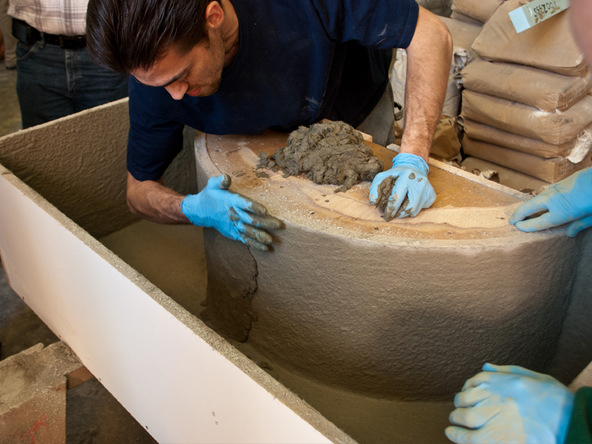

Step 3 – Mix the Backer

  • A fibrous backing blend will give the piece more strength than just the face mix or casting mix alone.

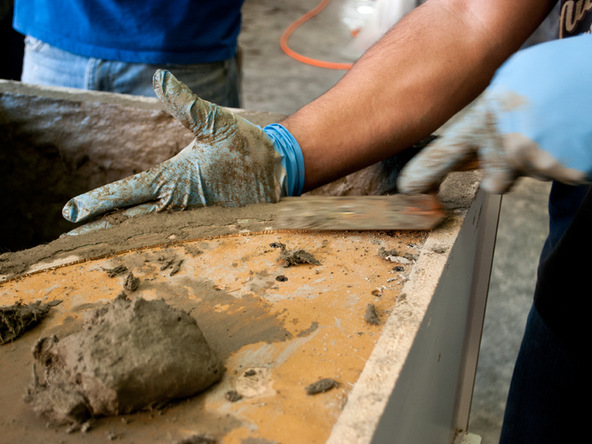

  • Press the mix into the form by hand, one pad at a time. Spread the concrete out as you lay it up, or it will slump down.

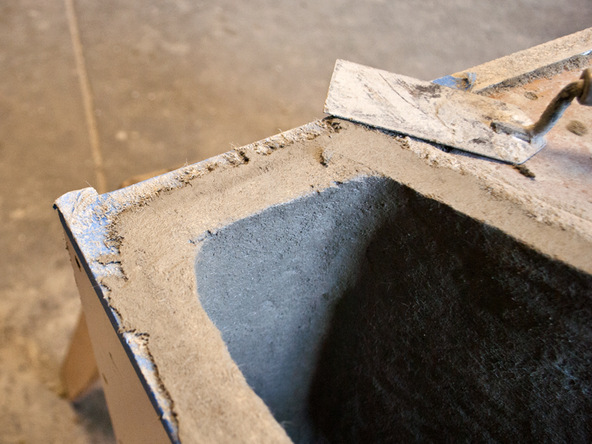

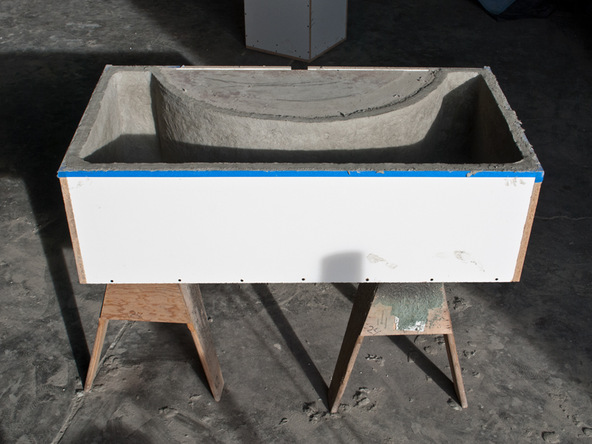

Step 4 – Flatten the Top

  • Continue packing the form until the walls are about 3/4″ thick.
  • Trowel the top edge flat to minimize grinding later.
  • Leave some of the concrete hanging over the edge to help keep the walls from slumping.
  • Let the concrete cure for at least 24 hours, and then move on to the next step: Demolding.
